PCB Depaneling Machine

I.C.T LC-350 | Automated Depaneling PCBA Laser Cutting Machine

Smooth, burr-free edges without dust or residue after cutting
Cutting precision of ±0.02 mm for consistent product quality
Max cutting speed of 40 mm/s for high productivity
Adjustable laser head height for double-sided PCB and FPC
Non-contact cutting prevents stress and board deformation
High-speed linear motor platform for accuracy and durability
Vacuum adsorption platform allows fixture-free positioning
Supported by I.C.T’s responsive and professional global service

Description

PCBA Laser Cutting Machine for Precise PCB Work

The PCBA Laser Cutting Machine is a tool designed for cutting printed circuit boards without contact. It uses a green laser to make clean cuts on PCBs and FPCs. This machine helps in routing and depaneling tasks in electronics manufacturing. It comes with features like automatic height adjustment and a vacuum platform for easy positioning.

Built with parts from brands like OPTO-WAVE from America and SCANLAB from Germany, the PCBA Laser Cutting Machine ensures reliable performance. The linear motor platform moves fast and with high accuracy, reducing wear over time. It can handle boards up to 450mm by 350mm and cuts at speeds up to 40mm per second.

Key Features of PCBA Laser Cutting Machine

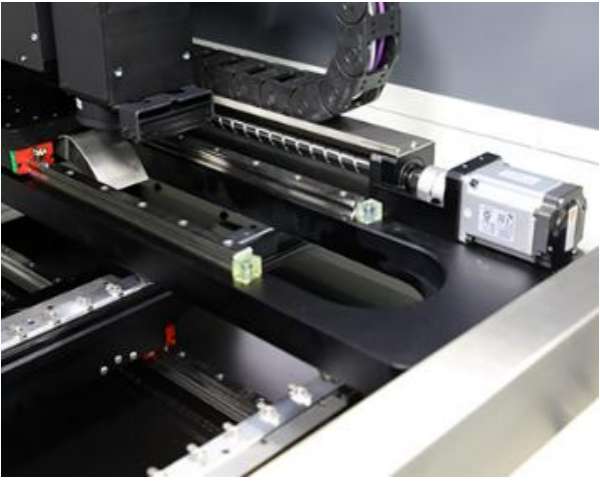

Japanese drive and motion system

THK is the largest supplier of precision linear motion
guides, ball splines, ball screws, crossed roller collars, actuators and more.

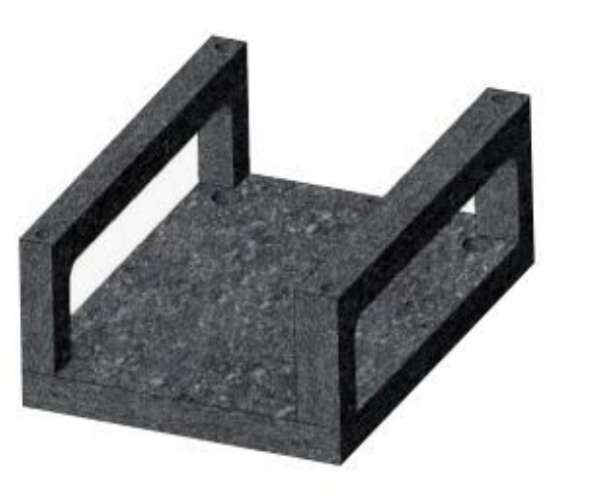

Granite Platform and Frame

The rock platform has the advantages of no rust, acid and
alkali resistance, wear resistance, no magnetization, no
deformation and so on.

Cutting Effect:

Specification

Laser Type: Green laser
Laser Power: Green laser: 35W

Platform Range: 300*300mm, double table
Adapt to Product Thickness: Max 1.5mm

Maximum Speed of Platform: 1000m/s
Maximum Cutting Speed: ≥200mm/s

Positioning Accuracy: ±0.005mm
Repeatability: ±0.005mm
Cutting Accuracy: ±0.025mm

Power: Standard: AC380V (Option: AC220V/AC110V), 50/60HZ, 3KW
Weight: 3200KG
Dimensions: L1600*W1300*H1800mm

Safe and Upgraded PCB Handling

Watch this video on an advanced loader, automatic laser cutting, and PCBA placement machine line used in a semiconductor factory. It shows the full process: boards enter via the loader, get cut precisely by the PCBA Laser Cutting Machine, and then move to placement. This setup is for semiconductor circuit boards, highlighting clean depaneling and routing. The line runs smoothly, demonstrating speed and accuracy. It’s a real example of how the machine fits into production for high-tech industries. Check it out to understand the workflow better.

More SMT Line Machines

Equipment	Description
Loader	Loads PCB into the production line automatically.
Auto Printer	Applies solder paste with high precision.
Conveyor	Moves PCB smoothly between machines.
Pick and Place Machine	Places components accurately on PCB.
Reflow Oven	Melts solder to bond components securely.
AOI Machine	Inspects PCB for defects automatically.
Unloader	Removes finished PCB from the line.

PCB Loading

Printing Solder Paste

Place the component

Melts solder

AOI Inspection

X-ray Inspect

On-Site Setup and Training Success

In customer factories, we assemble and debug the PCBA Laser Cutting Machine on site. Our I.C.T engineers then provide hands-on training. Photos show teams smiling after sessions, indicating good service. This reflects trust in our support, ensuring smooth operations post-install.

Positive Feedback from Our Clients

Clients often praise our engineers for quick problem-solving. They like the quality of our SMT equipment, including the PCBA Laser Cutting Machine. Pre-sales questions get clear answers fast, and after-sales fixes happen without delay. This builds long-term partnerships.

Certified for Quality and Safety

We hold CE certificates for each machine, including the PCBA Laser Cutting Machine. Our company has ISO9001 for quality management. We also own patents on our equipment designs. These ensure safety and innovation.

I.C.T Factory & Our Team

I.C.T is a full SMT factory solution partner. We provide equipment like the PCBA Laser Cutting Machine for electronics manufacturing. Based in China, we focus on reliable tools with global parts. Our team offers support from setup to service. We aim for practical solutions that meet industry needs.

Frequently Asked Questions

What materials can the PCBA Laser Cutting Machine handle?

Yes, the PCBA laser cutting machine supports a wide range of PCB and FPC materials, including rigid PCBs, flexible circuits (FPC), and multilayer boards up to 2mm thickness. It is commonly used in SMT manufacturing, consumer electronics, automotive modules, and wearable device production. The laser depaneling process ensures clean edges without mechanical stress, making it suitable for high-precision, multi-device production environments in both pilot lines and mass manufacturing.
How does laser solutions for PCB routing and depaneling improve production?

Laser PCB routing and depaneling improve production by enabling one-step, high-precision cutting of complex PCB shapes without mechanical tooling. This reduces setup time, eliminates tool wear, and shortens overall production cycles. It is especially effective in SMT production lines and high-mix manufacturing environments where frequent design changes require fast, flexible PCB separation with consistent accuracy and minimal rework.
Is the Laser Routing for PCB Depaneling safe for operators?

Yes, it is designed with a fully enclosed laser protection system that ensures operator safety during PCB depaneling operations. The sealed chamber prevents laser exposure and controls dust and particles generated during cutting. This makes it suitable for factory SMT environments, office prototype labs, and automated multi-device production lines where safety, stability, and compliance with industrial standards are required.
What maintenance does the Laser PCB Depaneling Machine need?

It requires very low maintenance due to its non-contact laser cutting system and high-precision linear motor platform. There are no mechanical blades, which reduces wear and replacement costs. Routine maintenance mainly includes optical system cleaning and software calibration checks. This makes it ideal for continuous SMT production environments, LED manufacturing lines, and high-volume PCB routing applications where uptime is critical.
Can pcb laser routing process double-sided boards?

Yes, PCB laser routing systems support double-sided boards through automatic height sensing and precision focus adjustment. The system detects board surface variations and adapts laser positioning in real time, ensuring clean cuts on both sides without damage. This is especially useful in flexible PCB manufacturing, wearable electronics, and multi-device SMT production lines where complex board structures are common.

Additional information

Item	LC-350
Laser Type	Green laser
Laser Power	Green laser:35W
Platform Range	300*300mm double table
Adapt to Product Thickness (mm)	MAX1.5mm
Maximum Speed Of Platform	1000m/s
Maximum Cutting Speed (mm/s)	≥200mm
Positioning Accuracy	±0.005mm
Repeatability	±0.005mm
Cutting Accuracy	±0.025mm
Power	AC220V/50Hz, 3KW
Weight	3200KG
Dimensions	L1600W1300H1800mm
