SMT X-Ray Inspection Machine For PCB Assembly Fast, accurate, and automated detection
High-Precision SMT X-Ray Inspection Machine
The I.C.T X-ray inspection machines deliver high-resolution imaging for PCB and electronic component inspection. Suitable for diverse industrial applications, they ensure quality and reliability in production lines.
✅ Automatic batch detection for various sample positions.
✅ Equipped with Japan’s Hamamatsu X-ray tube for superior performance.
✅ High-resolution digital X-ray flat panel for detailed imaging.
✅ CNC program for flexible, efficient inspection.
✅ 360° rotation and 60° tilt functionality for comprehensive scanning.
✅ Bubble and void measurement with one-click operation.
✅ Compliant with international safety standards, including EU CE and ISO.
Discover Our Seamlessly Integrated SMT X-Ray Inspection Machines for Your Production Line
Our SMT X-Ray inspection machines seamlessly integrate with your SMT line and THT production line, offering advanced inspection solutions to improve both efficiency and accuracy. Paired with our Comprehensive DIP Solution for ICT, our systems provide an all-in-one approach to streamline manufacturing. From Automatic insertion machines to ICT test machines, our solutions are designed to enhance soldering, inspection, and testing processes with precision.
Precision X-Ray Inspection for PCB Assembly Ensure high-quality production with I.C.T's advanced X-Ray systems, designed for flawless inspection and quality control.
BGA X-Ray Machine X-7100
SMD X-Ray X-7900
PCB X-Ray Machine X-9200
Which SMT X-Ray is Right for Your Process?
Choosing the right SMT X-Ray inspection machine or X-Ray Component Counter depends on your materials, inspection requirements, and production scale. Whether you’re focused on high-precision component counting, defect detection, or automated inspection, each solution is designed to meet the specific needs of your SMT production line. Below, we compare key differences in X-Ray inspection equipment to help you find the ideal fit for your manufacturing process.
What Our X-Ray Systems Can Detect
Our X-ray systems provide detailed and accurate inspection for a wide range of defects, ensuring the highest quality in electronic components and assemblies. Whether it’s solder joints, internal cracks, or foreign object detection, our technology helps you uncover hidden issues that are invisible to the naked eye.

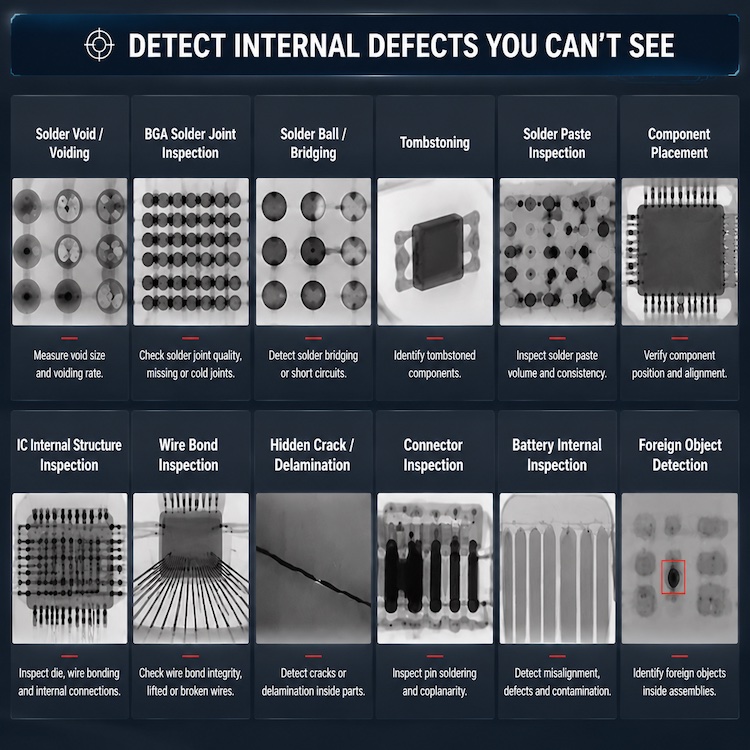

✅ Solder Voids: Measure void size and voiding rate in solder joints.
✅ BGA Solder Joints: Check for missing solder, cold joints, or weak connections.
✅ Solder Ball Bridging: Detect solder bridging or short circuits.
✅ Tombstoning: Identify tombstoned components.
✅ Solder Paste: Inspect solder paste volume, alignment, and consistency.
✅ Component Placement: Verify component positions and alignments.
✅ IC Internal Structure: Examine internal connections and bonding within IC.
✅ Wire Bonding: Check wire integrity, lifting, or broken wires.
✅ Hidden Cracks/Delamination: Detect internal cracks or delamination inside parts.
✅ Connector Inspection: Inspect pin soldering and coplanarity.
✅ Battery Internal Inspection: Detect internal structure and alignment issues in batteries.
✅ Foreign Object Detection: Identify foreign objects embedded in assemblies.
Wide Applications of Our X-Ray Inspection Systems
Our X-ray systems cater to various industries, providing high-precision inspections to ensure reliability, quality, and safety across applications. From PCBA assembly to aerospace components, our technology supports advanced quality assurance in diverse fields.
✅ PCBA / SMT Assembly: Detect solder defects and ensure proper component placement.
✅ Semiconductor Packaging: Inspect wire bonding, voids, and solder joint quality.
✅ LED / Mini LED: Check LED chip bonding and wire connection quality.
✅ Lithium Battery: Inspect electrode alignment, defects, and internal issues.
✅ Automotive Electronics: Ensure reliability of automotive electronics and critical components.
✅ Photovoltaic: Detect soldering defects and cracks in solar modules and connectors.
✅ Telecommunication: Inspect RF modules, connectors, and solder joints in telecom devices.
✅ Connectors & Cables: Inspect alignment, voids, and internal cable structures.
✅ Die Casting & Metal Parts: Detect porosity, cracks, and defects in metal parts.
Not sure which X-Ray machine fits your process?
Contact us to get your customized X-Ray solution.
Premier Global Service Support
As a leading SMT X-Ray inspection machine manufacturer, I.C.T has delivered trusted solutions to customers across various industries worldwide. Our X-Ray inspection machines, including the X-Ray Component Counter and Automated X-Ray Inspection System, are widely used in SMT, PCB assembly, and other manufacturing lines. Our equipment’s proven performance and reliability make us a preferred partner for global production.
