Semi-auto Solder Paste Printer I.C.T P15 LED Printer
- Handles oversized PCBs up to 1500×350 mm.
- Precision printing with ±0.05 mm accuracy.
- Works with stencil frames from 370×470 mm to 1750×650 mm.
- Adjustable print speed and blade pressure for custom control.
- Supports PCB thickness between 0.2 mm and 6 mm.
- Robust steel structure minimizes vibration for cleaner prints.
- Easy operation with semi-automatic alignment and smooth movement.
Description
Large-Format Semi-auto Solder Paste Printer
I.C.T Semi-auto Solder Paste Printer P15 is designed for manufacturers who need exceptional printing performance on extra-large PCBs. Built with a heavy-duty frame and a precision guideway system, it ensures stable movement and accurate paste application, even on boards up to 1500×350 mm in size.
Its advanced squeegee control mechanism applies even pressure across the entire stencil, producing clean solder deposits and reducing rework. The machine accommodates stencil sizes from 370×470 mm to 1750×650 mm, giving production teams the flexibility to handle a wide range of designs. With adjustable speed, pressure settings, and support for various PCB thicknesses, it adapts easily to different projects.
Top Features of I.C.T-P15 Solder Paste Stencil Printer
Stable Platform System
Accommodates some of the largest PCB formats used in LED lighting, telecom, and industrial equipment manufacturing—ensuring you can print without design compromises.
Smooth Drive System
The ±0.05 mm printing accuracy is achieved through imported linear guideways, stepper motors, and a rigid frame. This ensures high-quality solder paste placement for fine-pitch and complex components.
High-Precision Print System
Achieves ±0.05 mm precision thanks to imported guide rails, a reliable drive system, and balanced pressure distribution across the stencil.
User-Friendly Control System
The independent cylinder control system keeps pressure steady during each stroke, leading to sharp, well-defined paste deposits.
Specification
- High stability SMT Stencil Printer capability: 10 sec/cycle by standard printing under optimum condition. squeegee speed is 0-200mm/sec.
- Printing accuracy：±0.05mm
- PCB Size(mm): 1500*350
- Stencil Size(mm): 370*470-1750*650
- Frame Size(mm): 1650*400
- PCB Thickness: 0.2~6mm
- Platform Height(mm): 950
- Squeegee Length(mm): 200&300
- Transport Direction: Left-Right (Option: Right-Left)
- Dimension(mm): 2100*750*1650mm
mm - Weight: Approx: 430kg
Learn More in Video
Watch how our Semi-auto Solder Paste Printer integrates into a complete SMT production workflow. In this video, you’ll see its large-format printing capabilities, smooth stencil alignment, and precise paste application. The footage also highlights how it works seamlessly with other SMT machines—component placement, reflow soldering, and final inspection—to deliver a high-quality assembly process. Designed for big PCBs, the printer ensures reliable results with each run, making it an ideal choice for manufacturers who need both capacity and precision in their SMT solder paste screen printer machine.
More SMT Line Machines
| Equipment | Description |
|---|---|
| Loader | Loads PCB into the production line automatically. |
| Auto Printer | Applies solder paste with high precision. |
| Conveyor | Moves PCB smoothly between machines. |
| Pick and Place Machine | Places components accurately on PCB. |
| Reflow Oven | Melts solder to bond components securely. |
| AOI Machine | Inspects PCB for defects automatically. |
| Unloader | Removes finished PCB from the line. |
On-Site Assembly and Training Completed
Our engineering team completed the assembly and calibration of the P15 at the client’s factory, followed by operator training. The group photo with the customer shows their satisfaction and confidence in both the equipment and our support.

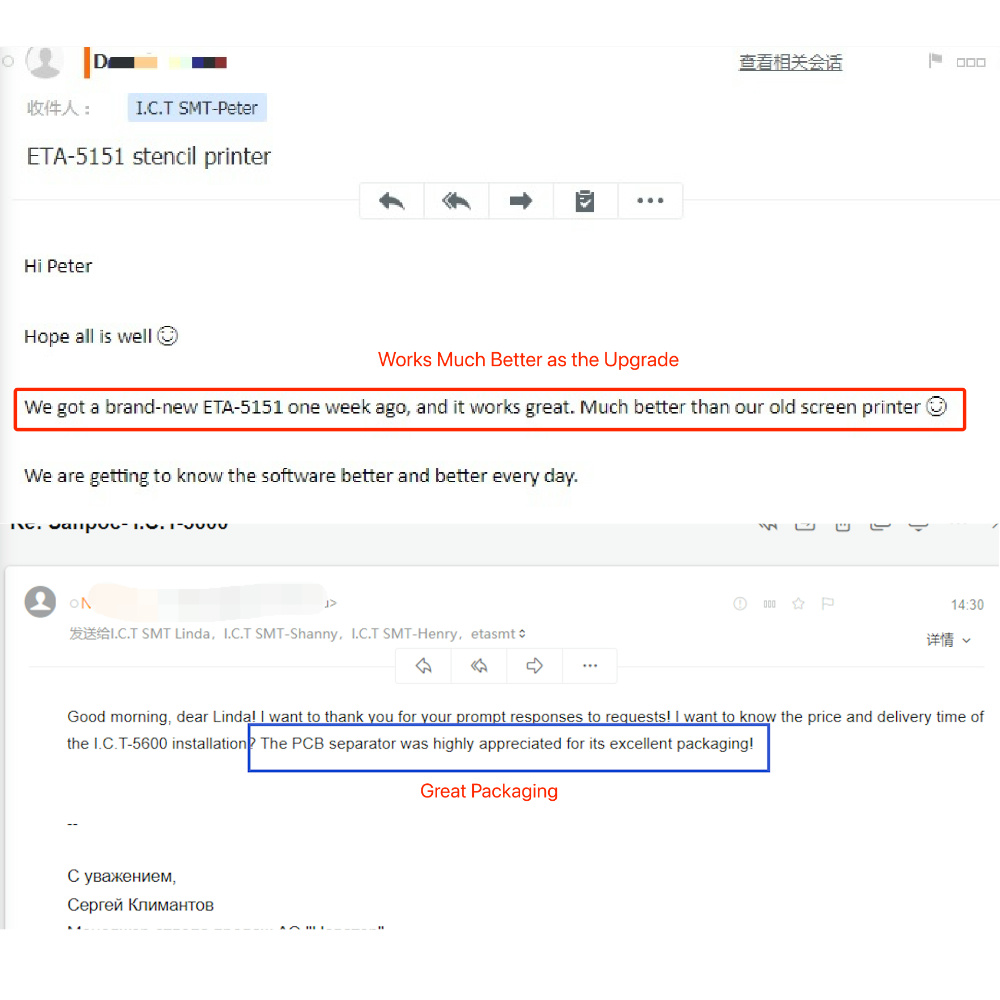

What Clients Say About I.C.T
Clients often commend the print quality, durability, and consistent performance of our SMT printers. They also value our responsive technical team, who solve questions and service requests quickly, helping keep production lines running without downtime.
Certifications and Compliance
The P15 is CE-certified, ISO9001-compliant, and protected by I.C.T’s patented technology. These certifications ensure that every unit meets international quality and safety standards.
I.C.T Factory & Our Team
I.C.T specializes in designing and manufacturing advanced SMT and electronic assembly equipment. From paste printers to reflow ovens and handling systems, we deliver solutions that meet modern manufacturing demands. Our combination of high-quality engineering, competitive pricing, and professional support makes us a trusted supplier worldwide. With a global network and thousands of installations, I.C.T helps customers improve efficiency and maintain product excellence.
Frequently Asked Questions
A semi-auto solder paste printer can support stencil frame sizes up to 1750 × 650 mm, making it suitable for very large PCB assemblies and oversized SMT applications. This large stencil capacity is particularly useful for LED lighting panels, power supply boards, display modules, and industrial control products. A larger stencil frame allows manufacturers to process long PCBs without dividing designs into multiple sections. Before selecting a stencil printer SMT solution, confirm both the stencil size and maximum PCB dimensions to ensure compatibility with your current and future production requirements.
Additional information
| Model | I.C.T-P15 |
|---|---|
| PCB Size | 1500*350mm |
| Platform Size | 1650*400mm |
| Stencil Size(mm) | 370*470-1750*650 |
| PCB Thickness | 0.2-6mm |
| Dimension | 2100*750*1650mm |
| Weight | 430Kg |
