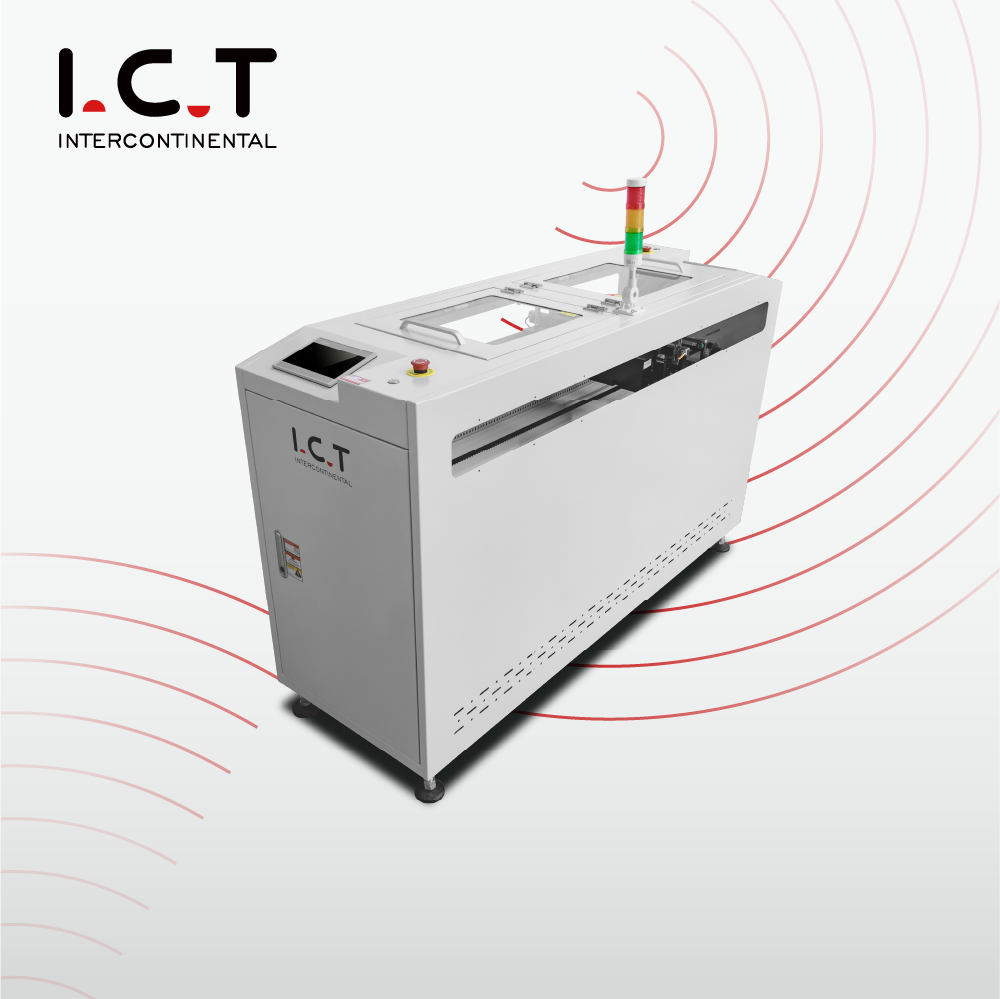

PCB Translation Shuttle Conveyor I.C.T-SC-L for PCB Handling
- Redirects PCBs to different channels.
- Touch screen and PLC for control.
- Closed design for better safety.
- Precise scaling with retractable motor.
- Smooth width adjustment using screws.
- Handles PCBs up to 550×350 mm.
- Weighs 220 kg for stability.
- I.C.T offers setup and training support.
Description
PCB Shuttle Conveyor Overview
The PCB Translation Shuttle Conveyor moves printed circuit boards between different lines in assembly setups. It redirects boards to various channels, helping with production flow. This machine fits in surface mount technology and DIP lines, handling boards from 50 by 50 mm to 550 by 350 mm. Built with a strong aluminum frame, it uses precise parts like ball screws for smooth shifts. The control uses a touch screen and PLC for easy setup. Safety comes from a closed design and torque limiter. It adjusts width with screws and has low clearance for steady transfers. The Translation Shuttle Conveyor works with SMEMA standards, making it simple to link with other equipment. It comes in different lengths as needed. This conveyor supports factories by keeping boards moving without stops. It runs on standard power and weighs 220 kg. Users can pick automatic width changes as an option. Overall, I.C.T SMT PCB Translation Shuttle Conveyor provides a way to manage board paths in assembly lines.
Key Features of PCB Shuttle Conveyor
Bright Lighting for Better Accuracy
I.C.T PCB Translation Shuttle Conveyor uses a solid aluminum frame for steady PCB movement. It includes high-quality parts like Panasonic PLC and TBI ball screws for exact shifts. The system handles multiple lines, merging or splitting flows without issues. Safety features protect workers and boards during operation. It fits boards up to 550×350 mm and adjusts traversing distance as needed. Maintenance is simple with an open top cover. This setup keeps production running smoothly in busy settings. The design meets common standards for quality.
Speed Control for Flexible Operation
This SMT PCB Transfer Shuttle Conveyor automates PCB shifts with advanced sensors and controls. It detects board positions and adjusts paths on its own, cutting down on manual steps. The machine supports various line setups through standard connections. Users program it easily for different tasks. Safety parts prevent problems during quick moves. It suits factories with high output needs, keeping accuracy high. The enclosed build reduces dust and makes cleaning straightforward.
Adjustable Rail for Multiple PCB Sizes
The SMT Traverser Shuttle Conveyor handles PCB transfers with reliable components. It moves boards without jams or harm. The adjustable setup fits different line widths and speeds. It supports larger boards and connects well with other machines. The case keeps out dirt, while easy access aids upkeep. This results in fewer breaks and steady work. It follows safety and quality rules.
Specification
- Dimension (mm): 600*1050 (W Depends on Traversing Distance)
- PCB Size (mm): 50*50-550*350
- PCB Direction: L to R or R to L
- Speed: Adjustable
- Control System: PLC
- Communication: SMEMA for both in & out
- Power Supply: 1 PH AC 220V 50/60Hz (Option: 110V to 380V)
Weight: 220 Kg
Safe and Upgraded PCB Handling
View our video, “Automatic PCB Translation Shuttle Conveyor – Streamline Your SMT Assembly Line Process,” showing the Translation Shuttle Conveyor in use. It highlights how the machine redirects PCBs between channels for better flow. See the touch screen setup and smooth shifts in action. The video explains features like width adjustment and safety design. Watch engineers test it in a factory setting. This clip shows integration with SMT lines for real tasks.
More SMT Line Machines
| Equipment | Description |
|---|---|
| Loader | Loads PCB into the production line automatically. |
| Auto Printer | Applies solder paste with high precision. |
| Conveyor | Moves PCB smoothly between machines. |
| Pick and Place Machine | Places components accurately on PCB. |
| Reflow Oven | Melts solder to bond components securely. |
| AOI Machine | Inspects PCB for defects automatically. |
| Unloader | Removes finished PCB from the line. |
On-Site Setup and Training Success
Photos show the Translation Shuttle Conveyor during assembly and testing at client sites. I.C.T engineers go to train staff on operation and care. Group pictures after sessions highlight content clients. These shots stand for good service and solid machines from our team.
Positive Feedback from Our Clients
Users often thank our engineers for helpful advice. They like the build of our SMT tools, including the Translation Shuttle Conveyor, for lasting well. Questions before buying get quick replies, and fixes after come fast. This leads to strong trust in our items.
Certified for Quality and Safety
Our Translation Shuttle Conveyor has CE marks for safety. I.C.T follows ISO9001 for quality control. We also have patents on machine designs, showing our focus on standards.
I.C.T Factory & Our Team
I.C.T, from China, makes equipment for SMT lines used around the world. We build machines like the Translation Shuttle Conveyor to fit factory needs. Our staff has long experience in assembly work. We give full help from sales to fixes. Clients in many places use our tools every day. We keep ISO9001 and CE marks. Our aim is to make solid items at good prices. We update designs from user notes.
Frequently Asked Questions
Additional information
| Model | SC-L |
|---|---|
| PCB Width | 50*50-550*350 |
| PCB Direction | L to R or R to L |
| Cycle Time | Depends on Traversing Distance |
| Control System | PLC |
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) |
| Dimension(mm) | 600*W*1050(W Depends on Traversing Distance) |
| Weight | 220 Kg |
