I.C.T X-7900 | Advanced SMT 2D SMT X-ray Machine AXI for PCB Electronic
- High-Resolution Imaging: 15um resolution for detailed component analysis.
- Intelligent Digital Camera: 5M pixel camera ensures clear visuals.
- Wide PCB Compatibility: Supports PCBs from 5050mm to 650510mm.
- Quick Programming: Automatic element search for fast setup.
- I.C.T Service Support: Expert training and after-sales service.
Description
Advanced SMT X-Ray Machine Solutions

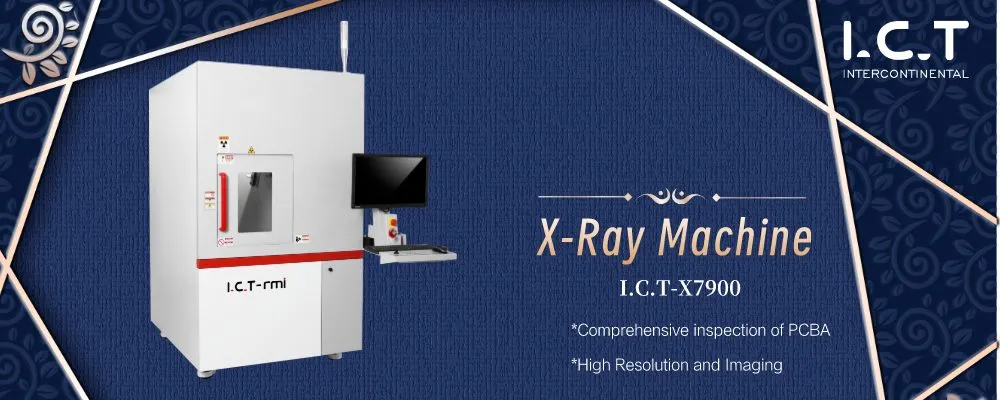

The I.C.T X-7900 SMT X-ray machine is a cutting-edge solution for precise PCB inspection. Designed for electronics manufacturing, this machine ensures high-quality production by detecting defects like absent components, misalignment, or soldering issues. With advanced imaging and intelligent algorithms, it offers reliable results for complex assemblies. I.C.T, a trusted name in SMT equipment, delivers this robust SMT X-ray machine to enhance efficiency and accuracy in your production line. Its user-friendly interface and quick programming make it ideal for manufacturers aiming for flawless PCB quality control.
Top Features of SMT X-Ray Machine
Precision BGA X-Ray Inspection
The I.C.T X-7900 excels in BGA X-ray inspection machine tasks, delivering clear images of hidden solder joints. Its 15um resolution detects defects like voids or misalignment in BGA components. The intelligent 5M pixel camera ensures precise analysis, reducing errors in high-density PCB assemblies. This feature is perfect for manufacturers needing reliable quality control for complex circuits, ensuring every BGA component meets strict standards.
Application:
Accurate PCB X-Ray Inspection: For X-ray machine PCB inspection, the X-7900 offers unmatched accuracy. Using advanced algorithms like CNN and color contrast, it identifies issues such as absent components or soldering defects. The machine’s ability to inspect PCBs up to 650*510mm makes it ideal for large-scale production. Its quick programming feature allows operators to set up inspections efficiently, saving time and boosting productivity.
.
Detection case:
Reliable PCB X-Ray Machines
As one of the top PCB X-ray machines, the X-7900 ensures consistent performance. Its robust design, weighing up to 600kg, supports stable operation. The machine’s template matching and character comparison features detect foreign materials or broken components with ease. This reliability makes it a go-to choice for manufacturers aiming for zero-defect PCB production.
Advanced PCB X-Ray Inspection Machine
The PCB X-ray inspection machine feature of the X-7900 provides comprehensive defect detection. It supports component and soldering tests, identifying issues like misalignment or extra components. With a rated power of 380W, it balances efficiency and energy use. The automatic search function simplifies programming, making it accessible for operators while maintaining high precision in quality control.
With the CNC programming control feature, users can quickly create inspection routines for repeated use. It allows batch scanning of PCBs in fixed positions, with automatic measurements of length, width, bubble size, and void rate. The color simulation helps in analyzing the joints more clearly. This makes the X-7900 not only ideal for high-mix low-volume production but also suitable for mass inspection. The system is designed to minimize setup time while maximizing inspection accuracy.
Advanced HD X-ray Imaging System
The optional digital HD flat panel detector offers crystal-clear imaging with real-time correction and temperature monitoring. With 16-bit A/D conversion and 1648×1644 pixel resolution, it captures even the smallest defects. Operators can choose different gain modes based on the inspection task. This smart imaging system guarantees high-quality results for both research and production needs.
Specification
- Inspection Algorithm: CNN, Color contrast, Outline recognition, Offset inspection, Template matching, Character comparison, OCR, etc.
- Inspection Item: Component: Absent, Reversed, Misalignment, Broken, Extra, Foreign Material, Stained, etc. Other: NG tracking bar (optional), Control box (optional), Mixed material inspection, Panel inspection.
- Special Function: Automatic search of elements and quick programming.
- Resolution: 15um (38.4*28.8mm).
- Inspection Item: Component test, soldering test.
- Camera: 5M pixel intelligent digital industrial camera.
- PCB Size: I.C.T-V8: 5050~430330mm; I.C.T-V8XL: 5050~650510mm.
- Rated Power: 380W.
- Weight: I.C.T-V8: 500Kg; I.C.T-V8XL: 600Kg.
- Dimension: I.C.T-V8: 88011701350mm (excluding the light); I.C.T-V8XL: 108014701370mm (excluding the light).
Case Study Video Introduction
This video showcases the I.C.T X-7900 SMT X-ray machine in action at a client’s factory. It highlights the machine’s ability to detect defects in PCB assemblies with high precision. The footage includes setup, inspection processes, and results, demonstrating how the machine ensures quality in electronics manufacturing. I.C.T engineers also appear, providing training to ensure seamless operation, proving the machine’s reliability and user-friendly design.
More SMT Line Machines
| Equipment | Description |
|---|---|
| Loader | Loads PCB into the production line automatically. |
| Auto Printer | Applies solder paste with high precision. |
| Conveyor | Moves PCB smoothly between machines. |
| Pick and Place Machine | Places components accurately on PCB. |
| Reflow Oven | Melts solder to bond components securely. |
| AOI Machine | Inspects PCB for defects automatically. |
| Unloader | Removes finished PCB from the line. |
Client Training and Satisfaction
At I.C.T, we prioritize customer satisfaction. Our engineers visit client factories to assist with SMT X-ray machine setup and debugging. After installation, we provide hands-on training to ensure smooth operation. A group photo with clients post-training reflects their satisfaction with our service, highlighting the trust and reliability I.C.T delivers in every project.
Customer Good Reviews
Clients consistently praise our SMT X-ray machine for its quality and performance. They appreciate our engineers’ expertise, quick responses to pre-sales inquiries, and fast after-sales support. Many highlight the durability of our equipment and the precision of our PCB inspection solutions, making I.C.T a preferred partner in electronics manufacturing.
Trusted Quality Certifications
The I.C.T X-7900 SMT X-ray machine holds CE and ISO9001 certifications, ensuring compliance with global standards. Additionally, our equipment is backed by multiple patent certificates, reflecting our commitment to innovation and quality in PCB inspection technology.
About I.C.T Company
I.C.T is a leading provider of SMT solutions, specializing in high-quality equipment like the X-7900 SMT X-ray machine. With years of experience, we deliver innovative, reliable, and efficient tools for electronics manufacturing. Our global support network ensures fast, professional service, from installation to after-sales support. Headquartered in China, I.C.T combines advanced technology with European standards to meet the needs of modern production lines.
Frequently Asked Questions
The SMT X-ray machine detects missing, reversed, misaligned, broken, or contaminated components, as well as soldering defects like bridges, voids, and cold joints. This high-resolution inspection ensures early detection in multi-device or high-volume SMT lines, reducing rework and improving first-pass yield for electronics, automotive, or medical PCBs.
Additional information
| Model | I.C.T-9500 |
|---|---|
| X-Ray Tube | Max. Voltages: Type 160kV/1000μA, Open Micro Focus X-ray Tube |
| System Computer | Monitor: 24” LCD |
| Working Platform | Max. Inspection Area: 530mm*470mm Max. Loading Weight: 10kg |
| Navigation | Camera: HD Camera, Laser point |
| Equipment Features | Power Supply: AC 110~220V (±10%) 50Hz, 3kW |
| UPS | 1000VA, 800W |
