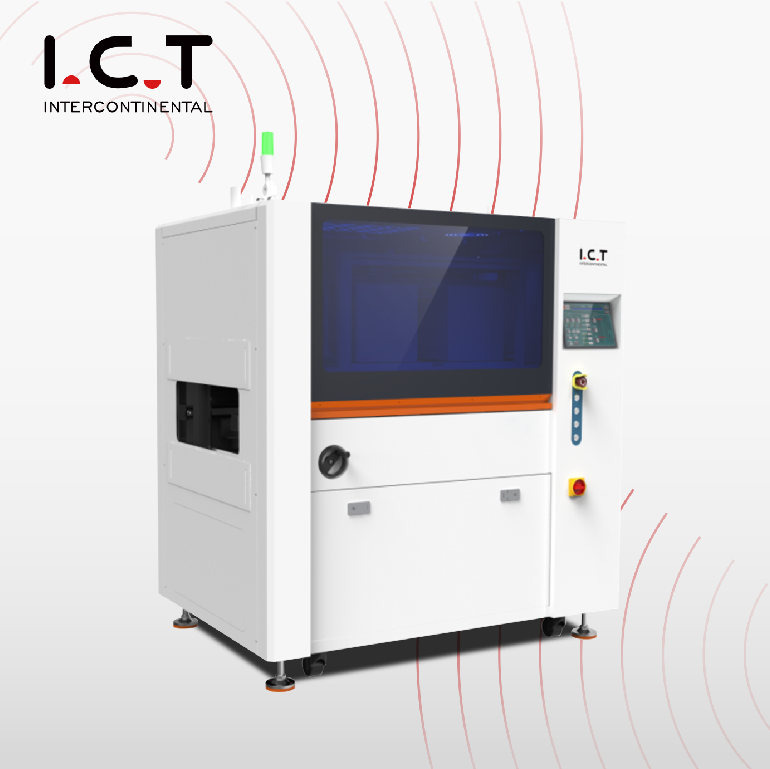

I.C.T-U1 | SMT PCB UV Curing Oven Machine
See why the UV Curing Oven Machine stands out for PCB curing needs.
- Handles PCBs up to 500mm wide
- Two 5KW UV light sets
- Adjustable conveyor speed 500-5000mm/min
- I.C.T ensures reliable installation support
- Imported UV tubes for stability
- Teflon conveyor belt for smooth transport
- Cooling area keeps PCB temperatures low
- Stainless steel chain for durability
Description
UV Curing Oven Machine Benefits
The UV Curing Oven Machine provides efficient curing for SMT production. It uses UVA-band light with a 365nm wavelength for quick drying of coatings. The machine’s compact size and flexible conveyor system make it easy to integrate into inline setups. With precise controls and robust components, it ensures high-quality curing for various PCB applications, enhancing factory productivity.
Key Benefits of UV Curing Oven
Powerful UV Light System
The UV Curing Oven Machine uses two 5KW UV light sets with imported tubes from the USA. These deliver strong, stable UVA light at 365nm, ensuring fast curing of adhesives and coatings. The adjustable lamp height and reflectors maximize light efficiency, reducing curing time and improving PCB quality. This system is perfect for high-speed SMT lines.
Flexible Conveyor System
With a Teflon conveyor belt and stainless steel chain, the UV Curing Oven Machine offers adjustable speeds from 500-5000mm/min. It supports PCBs up to 500mm wide and allows free direction changes. The precise motor control prevents PCB jams, ensuring smooth and reliable transport through the curing process, ideal for diverse production needs.
Effective Cooling Zone
The UV Curing Oven Machine includes an independent cooling area with fan-based cooling to keep PCBs at low temperatures after curing. This feature protects sensitive components and ensures consistent quality. The 35m³/min exhaust system further enhances safety and performance, making it a practical choice for electronics manufacturing.
Specifications of UV Curing Oven Machine
Control system: Instrument
Transport high: 910+25mm
Max PCBA height: ±100mm
Max width of PCBA: 500mm
Transport: Stainless steel chain
Conveyor speed: 500~5000mm/min
UV light quantity: 2set
UV light power: 5Kw/set
UV light source: UVA band
Main wave length: 365nm
UV light height adjustment: Adjustable
Electric supply: 3Phase, 380V 50/60Hz
Dimension: (L*W*H) 1800*970*1835mm
Weight: Approx.350KG

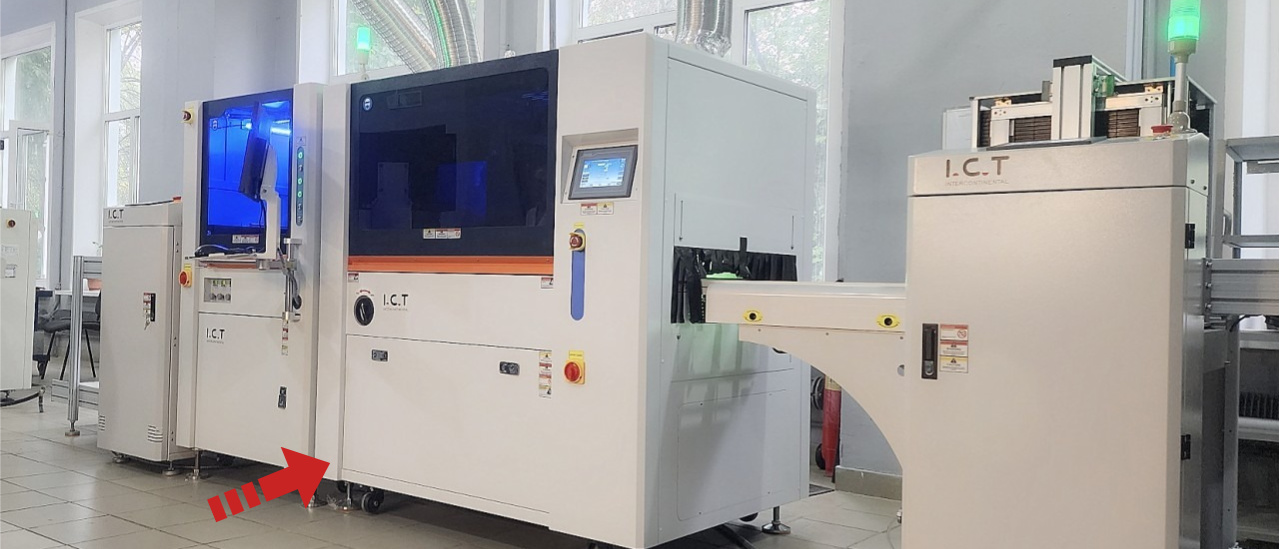

Explore Inline UV Curing Oven
Watch Turnkey Solutions for PCBA Conformal Coating Machine in Medical Industry to explore the UV Curing Oven Machine in action. This video showcases its role in a conformal coating line, highlighting fast curing, precise control, and seamless integration for medical PCB production.
More SMT Line Machines
| Equipment | Description |
|---|---|
| Loader | Loads PCB into the production line automatically. |
| Auto Printer | Applies solder paste with high precision. |
| Conveyor | Moves PCB smoothly between machines. |
| Pick and Place Machine | Places components accurately on PCB. |
| Reflow Oven | Melts solder to bond components securely. |
| AOI Machine | Inspects PCB for defects automatically. |
| Unloader | Removes finished PCB from the line. |
Seamless Installation and Training
I.C.T engineers expertly assemble and debug the UV Curing Oven Machine at client factories. After setup, we provide detailed training to ensure operators are confident. A group photo with satisfied customers highlights their trust in our service, reflecting I.C.T’s commitment to quality support and successful equipment integration.
Trusted Customer Reviews
Customers often praise I.C.T’s UV Curing Oven Machine for its durability and performance. They value our engineers’ fast responses to pre-sale questions and quick after-sales support. Many highlight the machine’s consistent curing quality and its role in improving SMT efficiency, making it a trusted asset in their production lines.
Certified Quality Standards
The UV Curing Oven Machine holds CE and ISO9001 certifications, ensuring global quality standards. It also includes patent certificates for its innovative design. These certifications confirm the machine’s reliability and safety, giving customers confidence in its performance for SMT curing applications.
About I.C.T Company
I.C.T, based in China, delivers advanced SMT solutions like the UV Curing Oven Machine. We combine cutting-edge technology with European quality standards to provide reliable equipment. Our team offers expert installation, training, and 24/7 support, ensuring customer satisfaction. I.C.T’s focus on innovation helps factories worldwide enhance productivity and achieve high-quality results.
Frequently Asked Questions
The UV Curing Oven Machine quickly dries adhesives and coatings for PCBs using UV light.
Additional information
| Model | I.C.T-U1 |
|---|---|
| Transport | Teflon mesh belt |
| Control System | Instrument |
| Conveyor Speed | 100～3000mm/min |
| UV light quantity | 1set |
| UV light power | 2Kw/set |
| UV light source | UVA band |
| Main wave length | 365nm |
| UV light height adjustment | Adjustable |
| Transport high | 750+/-20mm |
| Maximum PCBA Height | +80mm |
| Max.Width Of PCBA | 350mm |
| Conveyor Direction | L→R (Option: R→L) |
| Cooling Method | Fan |
| Exhaust Volume | 10M3/minx1 Exhausts |
| Electric Supply | 3phase,220V |
| Power Consumption | 5KW |
| Dimension (L*W*H)mm | 1950x770x1700 |
| Weight | Approx.350KG |
