I.C.T-SS430 | Off-line Selective Soldering Machine
- Precise Flux Application: High-frequency pulse valve ensures accurate fluxing.
- Stable PCB Handling: Side and top clamp system for secure PCB positioning.
- Efficient Preheating System: Adjustable IR heater for optimal heat distribution.
- High Positioning Accuracy: XY platform with 0.2mm repetition precision.
- Robust Transmission: Thickened rails support up to 20kg load.
- Advanced Control System: PLC module with high-speed Cat 6 communication.
Description
I.C.T-SS430 Selective Soldering Machine
The I.C.T-SS430 Selective Soldering Machine is a top-tier solution for precise and efficient soldering in electronics manufacturing. Designed for off-line operation, this machine delivers high-quality soldering with advanced fluxing and preheating systems.
Its robust design ensures stability and accuracy, making it ideal for small to medium-scale production. The Selective Soldering Machine integrates cutting-edge technology from I.C.T, offering reliable performance and easy maintenance.
With a focus on precision, it handles various PCB sizes and soldering tasks effortlessly. This machine is perfect for manufacturers seeking cost-effective, high-performance soldering solutions that meet industry standards like CE and ISO9001.
Key Features of Selective Soldering Machine
Precision Fluxing System
The I.C.T-SS430 Selective Soldering Machine excels in the off-line Selective Wave Soldering Machine Process with its high-frequency pulse injection valve. This system delivers precise flux dots with solid content below 10%, reducing waste and ensuring clean application. The optional nozzle jam-detection function enhances reliability. A pressure tank maintains stable flux supply, and an SMC automatic extraction pump ensures consistent performance. The design includes a tray to catch residue, making maintenance simple and efficient, which is critical for high-quality soldering results.
Efficient Preheating Technology
The I.C.T-SS430 features an advanced off-line Selective Soldering System with a robust preheating system. Equipped with adjustable bottom IR heaters and high-temperature cotton insulation, it ensures stable and efficient heat distribution across PCBs. This design maximizes the preheating area, delivering consistent temperatures for optimal soldering preparation. Top-brand heat-conducting parts and motors enhance durability and performance. The tool-free maintenance design simplifies upkeep, reducing downtime. This preheating technology ensures the Selective Soldering Machine achieves high-quality soldering results, making it ideal for diverse electronics manufacturing needs.
Reliable Soldering Performance
The Machine offers exceptional off line Selective Wave Soldering Process capabilities with its precise soldering system. The machine ensures accurate solder application through a stable XY platform with 0.2mm positioning accuracy. Japanese-brand pneumatic components and a robust transmission system guarantee reliable operation. The PLC-based control system optimizes soldering precision, minimizing errors. Designed for various PCB types, this Selective Soldering Machine delivers consistent, high-quality solder joints, enhancing productivity. Its user-friendly interface and Industry 4.0 compliance make it a top choice for manufacturers seeking dependable soldering solutions.
Specification
- Max Fixture Size 500*500mm
- Max PCB Size 500*500mm
- Flux System
Flux Storage Tank: 1L
Spray Nozzle: Germany Jet Valve (Spot and line spraying) 1set
Spray Nozzle Size: 130um (180, 210um Option)
- Preheating System
Preheating Mode: IR Heating
Preheating Area: L500mm*W500mm
Preheating Zone: Bottom: 1
- Soldering System
Solder Pot Quantity 1 set
Solder Capacity: 11Kg
- Software System
Operating System: Windows10
Programming Mode : CCD fast online program. Picture program.
- Option
Spray Nozzle Size: 180, 210um
Spray Nozzle Jam Detection
Auto Feeding Solder Wire
Wave Control-Mechanical pump
Nozzle Type Auto Identify
Soldering Nozzle Jet-flow Status Real
Time Monitoring
Barcode Scanner
- Machine size: L1400*W2580*H1722mm
- Machine weight: Approx. 700 kg
Case Study Video
Watch the I.C.T-SS430 Selective Soldering Machine in action. This video showcases the machine’s precision fluxing, stable PCB handling, and efficient soldering process. See how the off-line Selective Soldering System delivers consistent results on various PCB types. The video highlights the machine’s ease of use, from setup to operation, and demonstrates why manufacturers trust I.C.T for reliable soldering solutions. Discover how this Selective Soldering Machine boosts productivity and ensures high-quality outputs.
More DIP Line Machines
| Equipment | Description |
|---|---|
| Loader | Loads PCB into the production line automatically. |
| Auto Insertion Machine | Insert DIP component on PCB. |
| Conveyor | Moves PCB smoothly between machines. |
| Wave Soldering Machine | Melts solder to bond components securely. |
| Selective Solder Machine | Melts solder to bond components securely. |
| AOI Machine | Inspects PCB for defects automatically. |
| Unloader | Removes finished PCB from the line. |
Client Training and Satisfaction

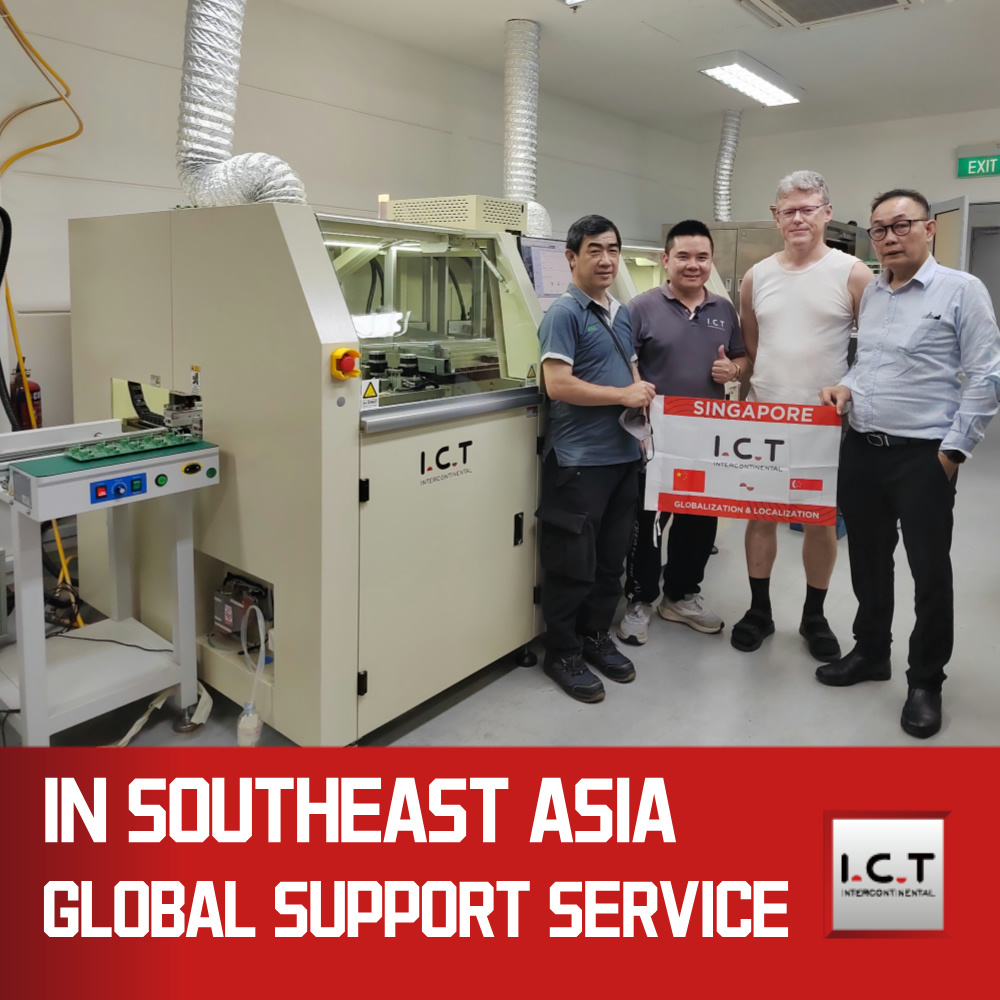

I.C.T engineers recently completed the installation and training for the I.C.T-SS430 Selective Soldering Machine at a client’s factory. The setup was seamless, and our team provided hands-on training to ensure smooth operation. A group photo with satisfied clients reflects their confidence in our equipment and services. This successful deployment underscores I.C.T’s commitment to delivering reliable solutions and exceptional support.
Customer Testimonials
Our clients consistently praise the I.C.T-SS430 Selective Soldering Machine for its quality and performance. They highlight the machine’s durability, precise soldering, and ease of use. Customers also commend our responsive pre-sales support and fast after-sales service. Whether it’s addressing technical queries or resolving issues, I.C.T’s engineers earn high praise, making our Selective Soldering Machine a trusted choice in the industry.
Certifications and Achievements
The I.C.T-SS430 Selective Soldering Machine comes with CE and ISO9001 certifications, ensuring compliance with global standards. Additionally, our machines are backed by multiple patent certificates, reflecting innovative design and technology. These certifications guarantee reliability and quality, giving manufacturers confidence in choosing I.C.T for their soldering needs.
I.C.T Factory & Our Team
I.C.T Group is a leading provider of SMT solutions, specializing in high-quality equipment like the I.C.T-SS430 Selective Soldering Machine. With years of expertise, we deliver innovative, reliable, and efficient machines to meet global manufacturing needs. Our commitment to quality is backed by CE and ISO9001 certifications. I.C.T offers comprehensive support, from installation to training, ensuring customer satisfaction. Based in China, we combine advanced technology with European standards to deliver exceptional value to electronics manufacturers worldwide.
Frequently Asked Questions
The I.C.T-SS430 Selective Soldering Machine uses a high-precision XY platform and PLC control to deliver uniform solder joints. The off-line Selective Wave Soldering Machine Process minimizes defects by maintaining stable flux and heat application, ensuring reliable results across various PCB types.
Additional information
| Model | SS540 |
|---|---|
| Flux Storage Tank | 1L |
| Flux Support | Flux Alarm, Automatic |
| Preheating Mode | IR Heating |
| Preheating Area | L520mm*W400mm |
| Preheating Zone | Top:1,Bottom:1 |
| Warm-up Time | Approx.15min (setting 150℃) |
| Control Mode | PC+PLC |
| Nozzle Inner Diameter | Φ 2.5-30mm(Customizable Special dimensions) |
| Max PCB Size | 500*400mm |
| PCB Thickness | 0.2-5.0mm |
| N2 | Purity of N2: 99.998%, 0.3～0.4 MPa,25 L/min,Outer diameter Φ6mm |
| Power Supply | 380±10%, 50/60HZ, 18Kw |
| Dimension | L1520*W1650*H1650mm |
| Weight | Approx:1200kg |
