Description

PCBA Online Cleaning Machine I.C.T-6300

The PCBA Online Cleaning Machine from I.C.T is designed for efficient, high-volume cleaning of printed circuit boards. This system combines advanced spray technology with a streamlined process to ensure thorough cleaning. It handles chemical washing, DI water rinsing, and hot air drying in one unit, making it ideal for SMT production lines. The PCBA Online Cleaning Machine uses adjustable spray bars and precise controls to deliver consistent results. Its robust stainless steel build resists corrosion, ensuring long-term reliability. With automated features and real-time monitoring, this machine simplifies operations while maintaining high cleanliness standards. I.C.T’s solution supports factories aiming for quality and efficiency in PCB assembly.

Key Features of PCB Cleaning Machines

Advanced Pre-Cleaning and Cleaning

The pre-cleaning and cleaning sections feature multiple spray bars for thorough residue removal. With a 7.5kW pump and adjustable spray pressure, the PCBA Online Cleaning Machine ensures consistent cleaning. The 240L clean liquid tank supports high-volume operations, and the system’s filtration reduces waste. Explosion-proof glass and a sealed design prevent leaks, making it safe and reliable for continuous use in PCB production.

Advanced Pre Cleaning and Cleaning

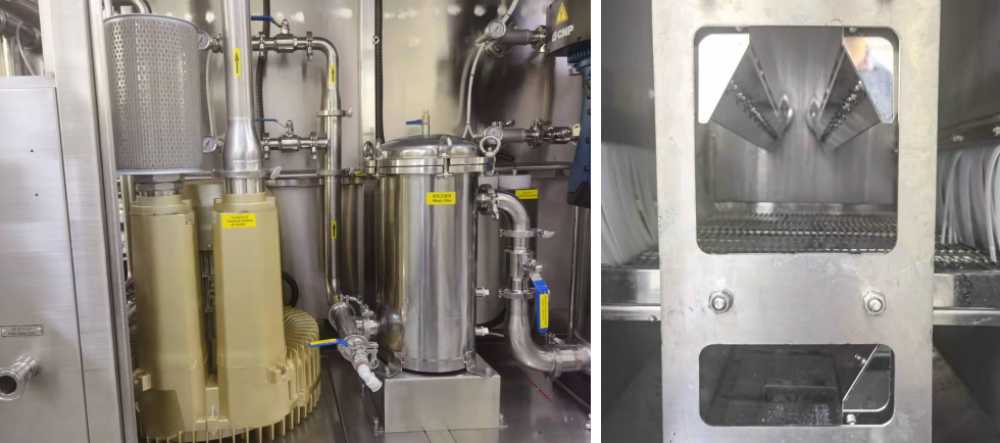

Effective Chemical Isolation

The chemical isolation section uses a 10HP air blower and adjustable air knives to separate cleaning stages. This prevents cross-contamination, ensuring the PCBA Online Cleaning Machine delivers clean boards. Electric air pressure meters monitor blow pressure, maintaining optimal performance. This feature enhances the machine’s ability to produce high-quality PCBs by keeping chemical residues contained during the cleaning process.

Effective Chemical Isolation

Multi-Stage DI Water Rinsing

The rinsing section includes pre-rinse, rinse, and final spray stages with adjustable spray manifolds. A 5.5HP pump and 36kW heaters ensure effective DI water rinsing at 6-12L/min. The PCBA Online Cleaning Machine recycles water to reduce consumption, making it eco-friendly. Conductivity monitoring guarantees high cleanliness, ideal for sensitive electronics manufacturing.

Multi Stage DI Water Rinsing

High-Efficiency Hot Air Drying

The hot air drying section features two independent heaters and 12 stainless steel air knives. With adjustable temperatures up to 100°C, the PCBA Online Cleaning Machine ensures fast, thorough drying. Double-layer insulation keeps the machine’s exterior cool, enhancing safety. This feature delivers dry, ready-to-use PCBs, improving production speed and quality in SMT lines.

High Efficiency Hot Air Drying

Specifications of PCBA Cleaning Machine

Cleaning Basket Size: 610x560x100mm, 2 layers
Diluent Tank Capacity: 60L
Concentrate Capacity: 30L
Detergent Heat Temperature: Room temp to 75°C
PCB Hot Air Dry Temperature: Room temp to 99°C
Resistivity Range: 0-18MΩ
Detergent Filter: 0.22um
Rinse Water Pipe Filter: 0.22um
Power Supply: AC380V, 3 Phase, 50Hz, 30KW
Dimensions: 1300x1200x1850mm
Weight: 600Kg

PCBA Cleaning Machine Video Introduction

Watch our video showcasing the I.C.T PCBA Online Cleaning Machine. It highlights the machine’s key features, including its high-pressure spray system, multi-stage rinsing, and efficient drying process. See how this PCB cleaning machine ensures thorough cleaning for printed circuit boards, streamlining SMT production with precision and reliability.

More SMT Line Machines

Equipment	Description
Loader	Loads PCB into the production line automatically.
Auto Printer	Applies solder paste with high precision.
Conveyor	Moves PCB smoothly between machines.
Pick and Place Machine	Places components accurately on PCB.
Reflow Oven	Melts solder to bond components securely.
AOI Machine	Inspects PCB for defects automatically.
Unloader	Removes finished PCB from the line.

PCB Loader

Solder Paste Printer

SMD Pick and Place Machine

Reflow Oven

AOI Inspection

X-ray Inspect

Customer Training and Support

Trusted Assembly and Training Services

At customer factories, I.C.T engineers handle equipment assembly and debugging with precision. After setup, they provide thorough training to ensure smooth operation. Photos of satisfied clients with our team reflect their trust in our PCBA Online Cleaning Machine and services. I.C.T’s commitment to quality support ensures customer satisfaction and efficient production.

Customer Factory and Trusted Partnership 01 Product Factory Details

Customer Feedback

High Praise for PCB Cleaning Machines

Clients consistently praise our PCBA Online Cleaning Machine for its reliable performance. They value the high quality of our SMT equipment and the expertise of I.C.T engineers. Customers often highlight our quick responses to pre-sale questions and fast after-sale issue resolution, ensuring their production lines run smoothly with our PCB cleaning machines.

Good Feedback 02 Product Factory Details

Certified Quality Standards

Certified Quality and Innovation

Our PCBA Online Cleaning Machine holds CE and ISO9001 certifications, ensuring compliance with global standards. Additionally, it is backed by multiple patent certificates, reflecting I.C.T’s commitment to innovative, high-quality PCB cleaning machines designed for modern electronics manufacturing.

I.C.T SMT Machine Certificate 02 Product Factory Details

About I.C.T Company

Your SMT Solution Partner

I.C.T, based in China, specializes in SMT equipment like the PCBA Cleaning Machine. We blend advanced technology with European quality standards to deliver reliable solutions. Our team provides expert installation, training, and 24/7 support, ensuring customer satisfaction. I.C.T’s focus on innovation helps factories worldwide improve efficiency and achieve high-quality production results.

I.C.T Factory and Team Product Factory Details

Frequently Asked Questions

What is a PCBA Online Cleaning Machine?

A PCBA online cleaning machine is an automated PCB cleaning system used in SMT production lines to remove flux residues, solder paste, dust, and other contaminants. It typically integrates chemical washing, DI water rinsing, and hot air drying in a continuous inline process. This makes it ideal for high-volume electronics manufacturing, automotive PCB assembly, and multi-device production environments where stable cleanliness and repeatable quality are required without manual intervention.
How does the PCB automatic cleaning machine save resources?

The PCB automatic cleaning machine saves resources by recycling DI water and optimizing energy usage through controlled heating, spray pressure, and filtration systems. This reduces water consumption and lowers electricity costs during continuous SMT production. It is especially beneficial for factories running multi-device PCB cleaning operations or high-mix production lines, where reducing operating cost while maintaining cleaning quality is critical for long-term manufacturing efficiency.
What makes the PCBA Cleaning Machine safe?

The PCBA cleaning machine is designed with multiple safety systems including emergency stop buttons, leakage detection protection, and over-temperature control. These features ensure safe operation during continuous SMT production line use. It is suitable for industrial environments such as electronics factories, LED manufacturing lines, and office pilot production setups where operator safety, equipment stability, and process control are essential requirements.
Why choose an SMT PCB cleaning machine?

An SMT PCB cleaning machine ensures high-precision cleaning of circuit boards, removing microscopic residues that can affect soldering quality and electrical performance. It improves product reliability and reduces failure rates in downstream assembly processes. This makes it essential for SMT manufacturing, automotive electronics, aerospace systems, and multi-device production environments where consistent PCB cleanliness directly impacts final product quality.
How reliable are PCB cleaning machines?

PCB cleaning machines are highly reliable because they are built with SUS304 stainless steel structures, corrosion-resistant components, and advanced PLC control systems. This ensures long-term durability and stable operation in continuous SMT production environments. They are widely used in industrial PCB manufacturing, high-mix electronics production, and multi-device assembly lines where consistent cleaning performance and minimal downtime are critical.
