I.C.T-510 | Multi-function Labeling UV Laser Marking Machine

Marking Range: 430×400 mm.
Marking Precision: ±0.05 mm.
PCB Size: 50×50 mm to 510×400 mm.
PCB Thickness: 0.5-10 mm.
Laser Types: UV (355 nm), Green (532 nm), Fiber (1064 nm), CO2 (10600 nm).
Laser Power: UV: 3W (5W/10W optional), Green: 10W, Fiber: 20W, CO2: 30W.
Marking Speed: Up to 7000 mm/s.
Special Features: CCD + MARK positioning, MES integration, no consumables.

Description

UV Laser Marking Machine

The UV Laser Marking Machine offers precise, eco-friendly marking for PCB assembly. It engraves text, barcodes, and 2D codes with high accuracy, supporting seamless SMT line integration. Using UV, green, fiber, or CO2 lasers, it ensures stable performance on various materials. I.C.T’s expert setup and training simplify operation. This UV Laser Marking Machine is ideal for electronics manufacturers needing reliable, high-speed marking for enhanced traceability and quality control.

PCB 2D Code Laser Marking Machine: Top Features

Stable Driving Mechanism

The UV Laser Marking Machine features an arch bridge suspension and ball screws for smooth operation. Dual servo motors control X/Y axes, ensuring high precision and load capacity. The dust cover minimizes maintenance, enhancing durability. This system supports fast, stable marking, making it ideal for manufacturers needing reliable performance in high-volume PCB production environments.

Driving System

Accurate Marking Technology

The UV Laser Marking Machine uses UV, green, fiber, or CO2 lasers for precise engraving. With ±0.05 mm accuracy, it marks clear barcodes and text on PCBs. The auto-adjusted Z-axis and factory-calibrated focal length ensure consistent results. This feature is perfect for manufacturers requiring high-precision marking for complex PCB designs and reliable traceability.

Marking System

Smooth Transport Mechanism

The UV Laser Marking Machine’s transport system uses an ESD anti-static belt and segmented rails for efficient PCB handling. The synchronous belt adjusts speed and tension for optimal performance. Ball screws ensure rail parallelism, reducing errors. This system is ideal for manufacturers seeking smooth, high-speed PCB movement in demanding production lines.

Transport System

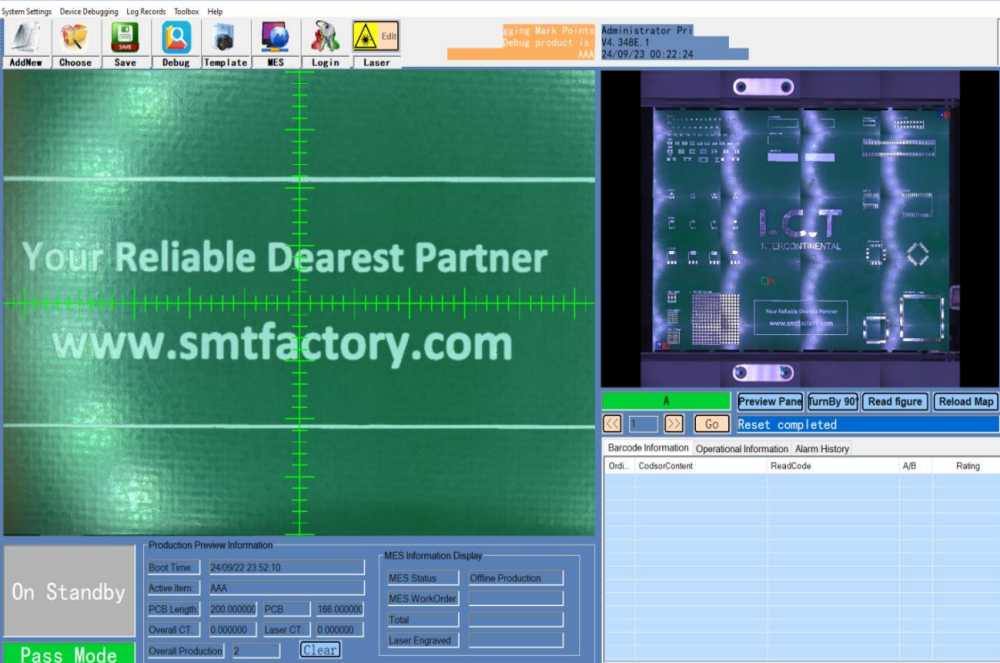

User-Friendly Operator Interface

The UV Laser Marking Machine offers a simple Windows-based interface for easy operation. It stores multiple product programs for quick changes, streamlining production. The coaxial camera simplifies calibration, and the full-frame scanning display aids programming. This feature suits manufacturers needing an intuitive, efficient system for fast and accurate PCB marking.

Operator System

Specifications of UV Laser Marking Machine

Marking Range: 430×400 mm.
Marking Precision: ±0.05 mm.
PCB Size: 50×50 mm to 510×400 mm.
PCB Thickness: 0.5-10 mm.
Laser Types: UV (355 nm), Green (532 nm), Fiber (1064 nm), CO2 (10600 nm).
Laser Power: UV: 3W (5W/10W optional), Green: 10W, Fiber: 20W, CO2: 30W.
Marking Speed: Up to 7000 mm/s.
Special Features: CCD + MARK positioning, MES integration, no consumables.

SMT Laser Marking Machine: Video Showcase

Watch our video, I.C.T | Automatic SMT Laser Marking Machine for PCB. It demonstrates the UV Laser Marking Machine’s precision in engraving barcodes and 2D codes on PCBs. The video highlights its fast laser system, CCD positioning, and MES integration for traceability. I.C.T’s expert setup ensures reliable performance for high-quality PCB production.

More SMT Line Machines

Equipment	Description
Loader	Loads PCB into the production line automatically.
Auto Printer	Applies solder paste with high precision.
Conveyor	Moves PCB smoothly between machines.
Pick and Place Machine	Places components accurately on PCB.
Reflow Oven	Melts solder to bond components securely.
AOI Machine	Inspects PCB for defects automatically.
Unloader	Removes finished PCB from the line.

PCB Loader

Solder Paste Printer

SMD Pick and Place Machine

Reflow Oven

AOI Inspection

X-ray Inspect

Customer Training and Support

Our engineers at I.C.T provide hands-on training at customer factories. After assembling and debugging the Best Pick and Place Machine, we ensure clients understand its operation. Group photos with satisfied customers reflect their trust in our service. This commitment to support helps businesses maximize the machine’s potential and maintain smooth operations.

Positive Customer Feedback

Customers praise the UV Laser Marking Machine for its accuracy and durability. They appreciate I.C.T’s quick pre-sale answers and fast after-sale support. Many highlight its reliable marking quality and ease of use, making it a preferred choice. I.C.T’s commitment to quality earns consistent positive reviews from global electronics manufacturers.

Industry-Recognized Certifications

The UV Laser Marking Machine holds CE and ISO9001 certifications, ensuring safety and quality. It also includes multiple patent certificates, reflecting innovative design. These credentials demonstrate I.C.T’s dedication to providing advanced, reliable solutions for electronics manufacturing, meeting global standards.

About I.C.T Company

I.C.T is a leading provider of SMT and DIP assembly solutions, specializing in equipment like the UV Laser Marking Machine. With years of expertise, we offer comprehensive support, from setup to training. Based in China, I.C.T delivers European-quality standards, ensuring efficient, dependable production lines for electronics manufacturers worldwide.

Frequently Asked Questions

What code types does the UV Laser Marking Machine support?

The UV laser marking machine supports QR codes, DataMatrix, Code 39, serial numbers, and other alphanumeric traceability codes. It is widely used in PCB laser marking machine applications for SMT production lines, electronics manufacturing, and industrial traceability systems. This ensures reliable product identification in multi-device production environments, where accurate marking is required for quality tracking, logistics control, and full lifecycle traceability of electronic components.
How fast is the Automatic Laser Marking Machine?

The automatic laser marking machine operates at speeds up to 7000 mm/s depending on material type, code complexity, and marking depth. This high-speed performance makes it suitable for SMT production lines and high-volume PCB manufacturing environments. It significantly reduces cycle time in electronics assembly, office pilot production setups, and automated factory systems where fast and continuous PCB marking is required without interrupting production flow.
What PCB thickness does the PCB 2D Code Laser Marking Machine handle?

The PCB 2D code laser marking machine supports PCB thicknesses from 0.5 mm to 10 mm, making it suitable for thin, standard, and thick board applications. The adjustable focusing system ensures stable laser precision across different materials. It is widely used in SMT manufacturing, LED production, and multi-device PCB environments where varying board thickness requires consistent marking quality without affecting traceability accuracy.
How does I.C.T support the SMT Laser Marking Machine?

I.C.T provides full global support for SMT laser marking machines, including on-site installation, operator training, process calibration, and after-sales service. Engineers help integrate the system into SMT production lines and optimize marking parameters for different PCB materials. This ensures stable long-term operation in factory environments, office pilot lines, and home R&D setups where fast deployment and reliable traceability marking are essential.
How does the PCBA Laser Marking Machines prevent errors?

The PCBA laser marking machine prevents errors using an auto-verification system that checks code quality in real time. It detects missing, unreadable, or misaligned codes and triggers automatic alerts for correction. This ensures high traceability accuracy in SMT production lines, PCB assembly factories, and multi-device manufacturing environments where marking consistency directly impacts product identification, quality control, and supply chain reliability.

Additional information

Model	I.C.T-510
Laser Type	UV laser,Green laser,Fiber laser,CO2 laser
Wave Length	UV laser:355nm, Green laser:532nm, Fiber laser:1064nm, CO2 laser:10640nm
Laser Power	UV laser:3W(5W Option), Green laser:7W, Fiber laser:20W, CO2 laser:30W
Laser Z-axis Lifting	Manual (Automatic is Option)
PCB Flip Function	N/A(Outside Fliper)
Marking Range	<430mm*400mm
PCB Size	L50W80mm ~L450 W350mm; Thickness 0.5mm-6mm
Marking Speed	<7000mm/s
Marking Precision	±0.05mm
Minimum Character Height	0.1mm ~0.4mm
Power	L1000 W1200 H1500 mm
Air Pressure	0.5~0.6Mpa
