High-Speed Automatic Resistance Shape Machine

High-speed forming capability up to 60,000 pcs per hour
Supports both U-type and F-type resistor shaping formats
Uses imported steel blades for precise cutting and durability
Compact footprint makes it easy to integrate into production lines
Stable feeding system ensures smooth and accurate component handling
Simple operation with minimal setup required for daily use
Built-in safety functions include overload and emergency stop protection

Description

Automatic Resistance Shape Machine Overview

The Automatic Resistance Shape Machine is designed to provide efficient forming and cutting of axial resistors for electronic assembly. With a processing speed of up to 60,000 pieces per hour, it ensures high productivity while maintaining consistent shaping quality. The machine supports both U-type and F-type resistor forms, making it suitable for a wide range of production needs. Built with durable imported steel blades, it delivers long service life and precise cutting. Its compact design allows easy integration into DIP or mixed assembly lines, helping factories save space while improving throughput. Operators benefit from its simple setup and user-friendly operation, while safety features such as emergency stop and overload protection guarantee safe working conditions. Supported by I.C.T’s global service team, the Automatic Resistance Shape Machine is a reliable and cost-effective choice for manufacturers seeking accuracy, speed, and stability in resistor forming processes.

Main Features of Automatic Resistance Shape Machine

Automatic Resistance Shape Machine

Fast and Accurate Shaping
With a production speed of up to 60,000 pcs per hour, the machine delivers high throughput without compromising accuracy. The imported steel blades provide precise cuts that ensure consistent resistor quality, even during continuous operation.

Flexible Format Options
This machine supports both U-type and F-type resistor forms, giving manufacturers the flexibility to adapt to different assembly needs. Its easy setup allows quick changeovers, making it practical for both high-mix and high-volume production.

Safe and Reliable Design
Equipped with overload protection and an emergency stop system, the machine ensures operator safety while maintaining continuous operation. Its stable feeding mechanism reduces jams and guarantees long-term reliability.

Specification

Production Capacity: 60,000 pcs per hour
Supported Formats: U-type and F-type axial resistors
Blade Material: Imported steel, long-lasting durability
Operation Mode: Automatic feeding and forming system
Safety Features: Overload protection and emergency stop system
Machine Size: Compact design for integration into assembly lines
Application: Suitable for DIP assembly and electronic component forming

More DIP Line Machines

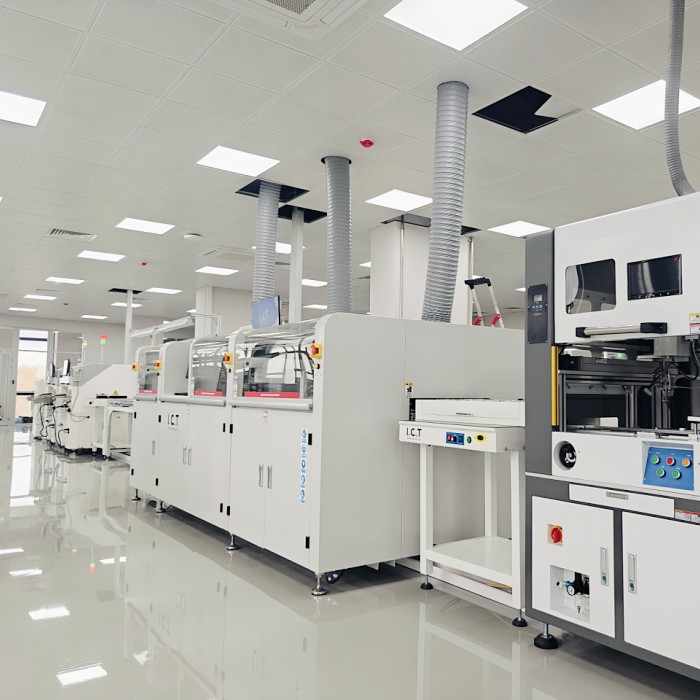

I.C.T Selective Wave Soldering Machine DIP Line5

Equipment	Description
Loader	Loads PCB into the production line automatically.
Auto Insertion Machine	Insert DIP component on PCB.
Conveyor	Moves PCB smoothly between machines.
Wave Soldering Machine	Melts solder to bond components securely.
Selective Solder Machine	Melts solder to bond components securely.
AOI Machine	Inspects PCB for defects automatically.
Unloader	Removes finished PCB from the line.

PCB Loading

Insert DIP Component

Insert Odd Component

Wave solder

Selective Wave Solder

DIP AOI

On-Site Setup and Training Success

I.C.T engineers provide on-site equipment setup and operator training. Customers often take group photos with our team after installation, showing their satisfaction with our professional service.

Positive Feedback from Our Clients

Customers value the Automatic Resistance Shape Machine for its strong build quality and consistent performance. They also appreciate I.C.T’s engineers for their quick pre-sales responses and efficient after-sales troubleshooting.

Certified for Quality and Safety

All I.C.T equipment comes with CE certification, ISO9001 approval, and multiple patented designs, ensuring safe and reliable compliance with international standards.

I.C.T Factory & Our Team

I.C.T Intercontinental is a global provider of SMT and DIP assembly solutions. Since 2012, we have supported more than 1,600 customers worldwide, delivering equipment for complete production lines. With 8 global branches and a dedicated service team, we combine Chinese manufacturing efficiency with European-level quality. Our goal is to help electronics manufacturers achieve stable production and long-term success.
