Automatic THT Assembly line
I.C.T Automatic THT Assembly Line ensures reliable and efficient production for through-hole components.
- Wave soldering: 99.8% defect-free joints.
- Fast insertion: 10,000 components per hour.
- AOI inspection: 99.9% defect detection rate.
- Flexible line for various PCB sizes.
- Low energy use saves operational costs.
- I.C.T provides fast support, expert training.
Description
THT Line Overview
I.C.T Automatic THT Assembly Line streamlines through-hole component assembly for industries like power supplies and automotive electronics. It uses advanced equipment to insert components, solder, and inspect PCBs with high precision. The Through Hole Technology Line and Semi Automatic Dip Soldering Machine ensure quality and efficiency. This line, including Simple DIP Assembly Line and Manual Insert DIP Line, reduces errors and boosts production for reliable, cost-effective manufacturing.
DIP Line Equipment

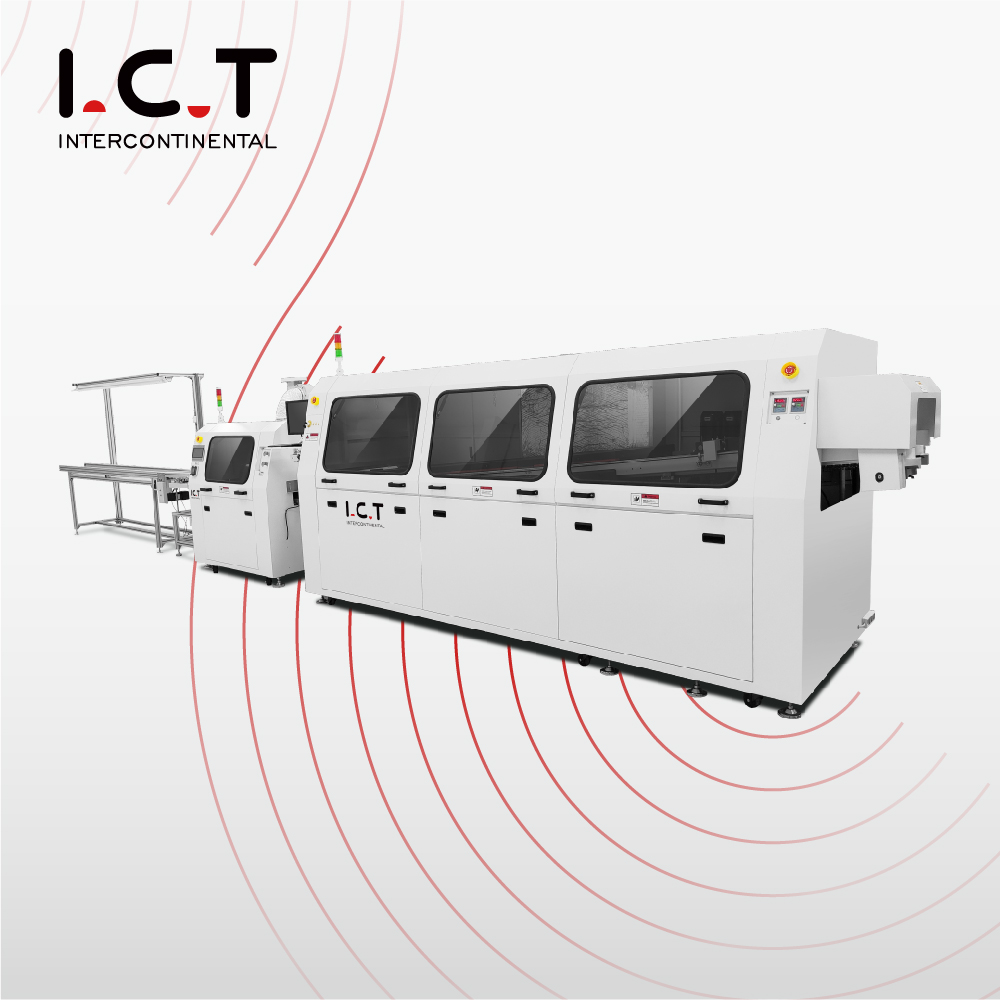

Automatic THT Assembly Line includes key machines for through-hole PCB assembly. It features manual or semi-automatic insertion stations, wave soldering for strong connections, and AOI for quality checks. The Through Hole Technology Line supports industries like LED and power electronics. With a Semi Automatic Dip Soldering Machine and Manual Insert DIP Line, the line ensures high reliability, low costs, and smooth operation for small to large-scale production needs.
| Equipment | Description |
|---|---|
| Insertion Station | Manual or semi-auto component insertion. |
| Wave Soldering Machine | Solders through-hole components securely. |
| AOI Inspection Machine | Detects soldering defects automatically. |
| Conveyor | Moves PCBs between stations smoothly. |
| Loader | Loads PCBs into the line automatically. |
| Unloader | Removes finished PCBs from the line. |
Customer Success Video
I.C.T presents a video showcasing a Finland client’s Automatic THT Assembly Line paired with an SMT line. They produce PCBA for computer power supplies. I.C.T engineers visited their factory to debug equipment and train the team on efficient production. The video highlights the Simple DIP Assembly Line and Manual Insert DIP Line, showing reliable performance and high-quality output for power electronics manufacturing.
Successful Installation and Training
I.C.T engineers set up and tested an Automatic THT Assembly Line at a client’s factory. They trained the staff for smooth operation. A group photo with happy workers shows their satisfaction with the Through Hole Technology Line and I.C.T’s expert service, reflecting the quality of the Semi Automatic Dip Soldering Machine and overall line efficiency.
Customer Feedback
Customers praise I.C.T’s Automatic THT Assembly Line for its top quality and durability. They appreciate engineers’ quick answers before purchase and fast fixes after. Many highlight the reliability of the Through Hole Technology Line and easy setup of the Simple DIP Assembly Line, saying I.C.T’s Manual Insert DIP Line improves their production speed and quality.
Our Certification
I.C.T Automatic THT Assembly Line holds CE certificates for all machines, ensuring safety and quality. The company has ISO9001 certification for its processes and multiple patents for innovative designs, proving its commitment to excellence in Semi Automatic Dip Soldering Machine solutions.
I.C.T Factory & Our Team
I.C.T is a global leader in electronics manufacturing with over 22 years of experience. It offers Automatic THT Assembly Lines and full support, from setup to training, for industries like power supplies and automotive. With three factories in China, I.C.T provides cost-effective Manual Insert DIP Line solutions. Its global service ensures the Simple DIP Assembly Line runs smoothly, delivering quality and value.
Additional information
| Factory Air Circuit Layout | Use factory air source or separate oil-free compressed air machine. Pressure should be greater than 7kg/cm2. |
|---|---|
| Factory Electrical Layout | Single-phase AC220 (220±10%, 50/60Hz) |
| Factory Exhaust Layout | The minimum flow rate of the exhaust duct is 500 cubic feet per minute (14.15m3/min)） |
| Factory Lighting Layout | The ideal illumination in the factory is 800~1200LUX, at least not less than 300LUX. |
| Factory Temperature Layout | The ambient temperature of the production workshop is 23±3°C, generally 17~28°C, and the relative humidity is 45%~70%RH. |
